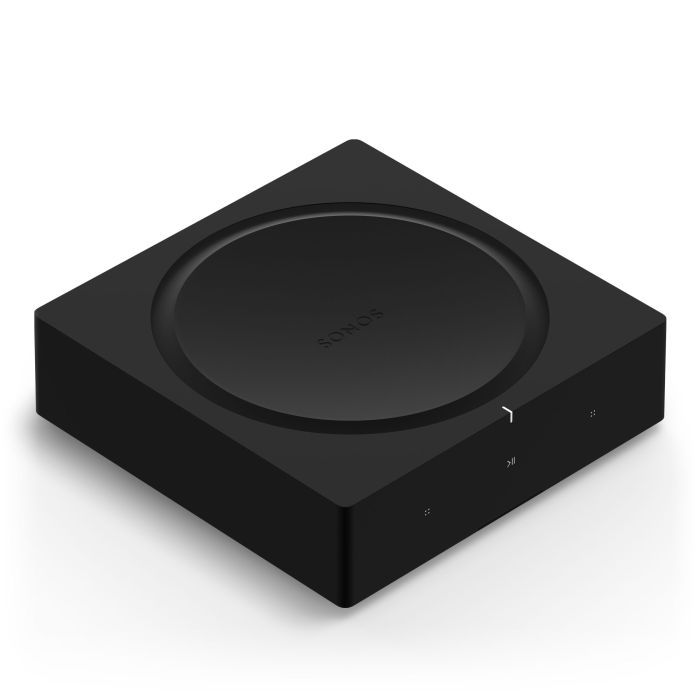

Sonos AMPG1UK1BLK Amplifier

Audio

Class-D digital amplifier: 125 W/Ch at 8 ohms
Line-In Sources Supported: Audio device with analogue RCA output or optical output (optical adaptor required). TV device with HDMI ARC or optical output (optical adaptor required).
Subwoofer output: Auto-detecting RCA type, user-adjustable 50-110 Hz crossover
Speaker output connections: Banana plugs (2) capable of stereo or dual mono sound.
Adjustable bass and treble controls to optimise sound performance. Adjust volume by individual room or by groups of rooms.

Physical

Dimensions - H x W x D: 2.52 x 8.54 x 8.54 in. (64 x 217 x 217 mm).
Weight: 4.6 lbs. (2.1 kg).
Product finish: Black
Controls: Touch interface with volume up/down, previous/next track and play/pause.

Power + Networking

Power supply: AC 100-120/220-240 V, 50-60 Hz
WiFi: Connects to your home Wi-Fi network with any 802.11 b/g/n router. 802.11n only network configurations are not supported—you can either change the router settings to 802.11 b/g/n or connect a Sonos product to your router.
Ethernet ports: Dual Ethernet ports can connect Amp to a wired home network and allow for connection of additional Sonos players.
System requirements: Passive speakers with speaker wire, broadband Internet, and Sonos app.

Contents

Sonos Amp, Sonos banana plugs (2), AC power cord, warranty and regulatory booklet, and Quickstart Guide.
